Description

Description

Switch seems to take up more horizontal space in XF 4.3+.

Steps to Reproduce

Add a Switch to a StackLayout with Horizontal orientation

Expected Behavior

Switch only takes the horizontal space it needs

Actual Behavior

It's taking more space then needed

Basic Information

  • Version with issue:
  • Last known good version: 4.2
  • IDE: VS2019 16.4.2
  • Platform Target Frameworks:
    • UWP: 16299
  • Android Support Library Version:
  • Nuget Packages:
  • Affected Devices:

Screenshots

Yellow is the background color of the switch

UWP (Win 10 1903) image

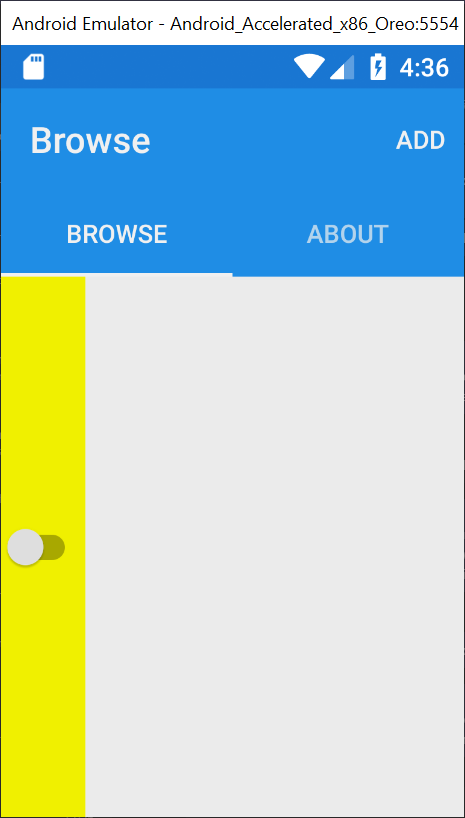

Android image

iOS image

Reproduction Link

SwitchRepro.zip

Contributor guide

Research direction
Investigate the recent changes to Switch layout in UWP renderer between versions 4.2 and 4.3. Compare the MeasureOverride or ArrangeOverride implementations in the UWP Switch renderer to identify what caused the increased horizontal space.
