PartDesign: Add a Slot Counterbore option in the Hole tool

Open

#7,237 opened on Jul 23, 2022

View on GitHubContributor guide
 (5 comments) (0 reactions) (0 assignees)C++ (5,550 forks)batch import
Help wantedMod: Part DesignType: Feature

Repository metrics

Stars
 (30,913 stars)
PR merge metrics
 (Avg merge 24d 7h) (217 merged PRs in 30d)

Description

Is there an existing request for this?

  • I have searched the existing requests

Forums discussion

https://forum.freecadweb.org/viewtopic.php?f=19&t=70239

Subproject(s) affected?

PartDesign

Idea description

Is it possible to add Slot "Counterbore" in "Part_Design Hole Tool"? Although Slot Counterbore is not used very often But it should be easier and faster if there is a Slot Counterbore in the Part_Design Hole Tool

Slot_Counterbore

Slot_Counterbore_Home

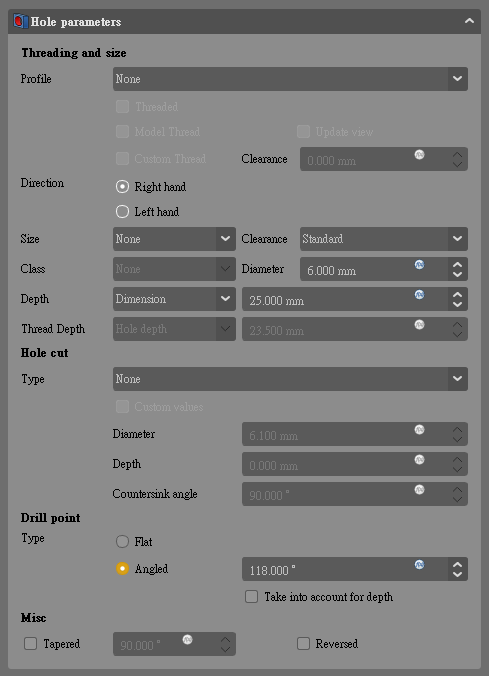

PartDesign_Hole

Anything else?

No response

Code of Conduct

  • I agree to follow this project's Code of Conduct
